Introduction

Patients with respiratory diseases can pose a risk of droplet infection to medical staff and fellow patients. Adhering to guidelines such as those set forth by the World Health Organization [1] and the regulations in numerous countries is essential, mandating the wearing of masks covering the mouth and nose in public areas and enclosed spaces, thereby mitigating the risk of transmission.

Patients grappling with respiratory conditions and those in the recovery phase from anesthesia may necessitate supplementary oxygen delivered through a Hudson mask affixed to the face.

The challenge is determining the optimal sequence for patients requiring both additional oxygen through an enrichment mask and protection with a mask covering the mouth and nose. Should the protective mask be placed first, maximizing coverage and infection protection, with the enrichment mask layered on top? Alternatively, is it more effective to apply the enrichment mask directly to the patient’s face for optimal oxygen enrichment, with the protective mask worn over it?

Currently, there is a notable absence of information in the medical literature pertaining to the impact of a protective mask on the concentrations of inhaled and exhaled oxygen and carbon dioxide during breathing when using an enrichment mask, both with and without the additional layer of a protective mask.

Access to accurate information holds the potential to enable informed utilization of protective masks, ensuring optimal protection for healthcare staff while simultaneously delivering optimal care for patients.

Objectives

This study aims to compare the concentrations of inhaled and exhaled oxygen and carbon dioxide in five different scenarios involving the use of an enrichment mask and a protective mask.

• Oxygen mask only
• Protective mask only
• A protective mask placed over an oxygen mask
• An oxygen mask placed over a protective mask
• An oxygen mask mounted on an N95 protective mask

The study was conducted in the Anesthesia Department at the English Hospital in Nazareth under the supervision of a specialist anesthesiologist.

Following approval from the Institutional Ethics Committee and after providing a comprehensive explanation and obtaining signed informed consent forms, 30 healthy volunteers were directed to lie supine on a horizontal mattress and breathe normally. Throughout the study, the following configurations were applied to the subjects’ faces for a duration of 5 minutes.

• Room air PM - Protective mask (DISPOSABLE MEDICAL MASK-Tcare3ply-VOLA PRODUCTS, production: PRC) in breathing room air.
• OM - The enrichment mask (HI OXYGEN MASK WITH 2M TUBE - WKM-1110, manufacturer: Weikang, China) is fitted to the face while enriching oxygen at a rate of 6 liters per minute.
• OM - The enrichment mask (HI OXYGEN MASK WITH 2M TUBE - WKM-1110, manufacturer: Weikang, China) is fitted to the face while enriching oxygen at a rate of 6 liters per minute.
• OM under PM - The enrichment mask is fitted to the face, delivering oxygen at a rate of 6 liters per minute, and on top of it, a standard protective mask is placed.
• OM under PM - The enrichment mask is fitted to the face, delivering oxygen at a rate of 6 liters per minute, and on top of it is a standard protective mask.
• OM over PM - The enrichment mask is fitted to the face, delivering oxygen at a rate of 6 liters per minute, and underneath it is a standard protective mask.
• OM over N95 - An enrichment mask is fitted to the face, delivering oxygen at a rate of 6 liters per minute, and underneath it is a protective mask of the N95 type (GB26262006-AA, Manufacturer: Xiantao Xianghua Industry & Trade Co., LTD.).

Conducting the Measurements

Gas concentration measurements in the inhaled and exhaled air were conducted using continuous monitoring on a BENEVISION N17 MINDRAY type monitor. The gas analysis module of the monitor was connected to an oxygen nasal cannula specifically designed for measurement (NASAL OXYGEN CANNULA-KY-OT-1152, manufacturer: MADEWELL, China).

The measurements were conducted continuously, with 60-second intervals between each stage to allow for adjustments in the experimental configuration.

Inclusion Criteria

• Ages 18-65
• BMI 18-25
• Height between 160 and 185 cm
• ASA I-II

Exclusion Criteria

• History of heart disease.

• History of lung disease.

• Underwent surgery within the last week.

• Facial deformities.

Medical Care

The study did not involve medical treatment or diagnosis. The total exposure to high-concentration oxygen for each subject did not exceed 20 minutes, and the concentration remained below 60%. All participants reported feeling well after completing the study.

Statistical Analysis

The statistical analysis included the examination of demographic data using mean and standard deviation. Independence was assessed through a one-way analysis of variance (ANOVA) test, followed by a post hoc LSD follow-up test. A significance level of less than 0.05 was defined as statistically significant.

Results

In the study, 24 men and 6 women participated. The demographic data of the study participants are presented in Table 1 below:

Table 1: Data of the Study Participants.

Concentration of Inhaled Gases

The concentrations of inhaled gases in various configurations are presented in Table 2:

Table 2: Oxygen and Carbon Dioxide Concentrations during Inhalation in Various Configurations.

Concentration of Inhaled Oxygen

In a one-way analysis of variance test, a significant difference was identified in the average oxygen concentrations across the five conditions (F(4,145)=55.49, p<.001, η²=0.605). This indicates that 60.5% of the variation in concentration averages can be attributed to the different situations and types of masks. The maximum observed concentration was in the state (OM under PM), with an oxygen mask on top of a standard protective mask (M=52.31, SD=14.72), while the minimum concentration was noted in the state (room air+PM) with a protective mask (M=20.06, SD=0.36) (refer to graph 1).

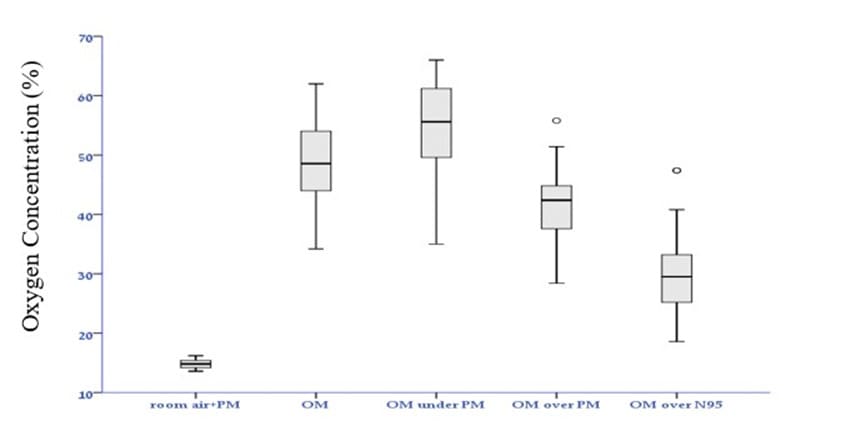

Graph 1: Inhaled Oxygen Concentrations in Various Configurations

Concentration of Inhaled Carbon Dioxide

In a one-way analysis of variance test, it was determined that there is no significant difference in the average carbon dioxide concentration across the five conditions (F(4,145)=1.511, p>.05, η²=0.04). Consequently, only 4% of the variation in concentration averages can be attributed to the different situations and types of masks. The maximum observed concentration was in the (room air+PM) protective mask condition (M=5.05, SD=2.07), while the minimum concentration was recorded in the (OM) oxygen mask condition (M=4.05, SD=2.03), with minimal differences between the various situations. Additionally, an LSD post hoc follow-up test indicated a statistical difference between the protective mask condition and all other conditions, with no statistical difference observed among the remaining situations and types of masks (see graph 2).

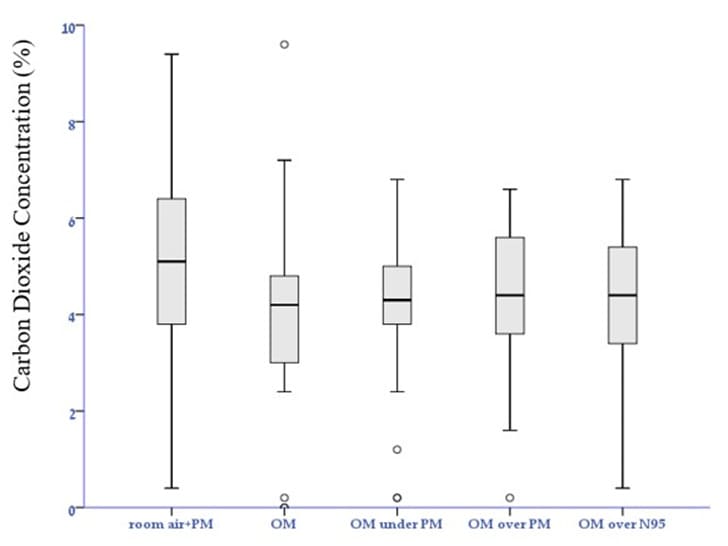

Graph 2: Inhaled Carbon Dioxide Concentrations

Concentration of Inhaled Gases

The concentration of inhaled gases in various configurations is presented in Table 3:

Table 3: Concentration of Exhaled Gases in Various Configurations

Concentration of Exhaled Oxygen

In a one-way analysis of variance test, a significant difference was identified in the average oxygen concentrations across the five conditions (F(4,145)=196.12, p<.001, η²=0.844). This implies that 88.4% of the variation in concentration averages can be attributed to the different situations and types of masks. The maximum observed concentration was in the state (OM under PM), with an oxygen mask on top of a standard protective mask (M=54.77, SD=7.82), while the minimum concentration was noted in the state (room air+PM) with a protective mask (M=14.85, SD=0.70). Furthermore, the LSD post hoc follow-up test indicated a statistical difference between all the situations and types of masks (See Graph 3).

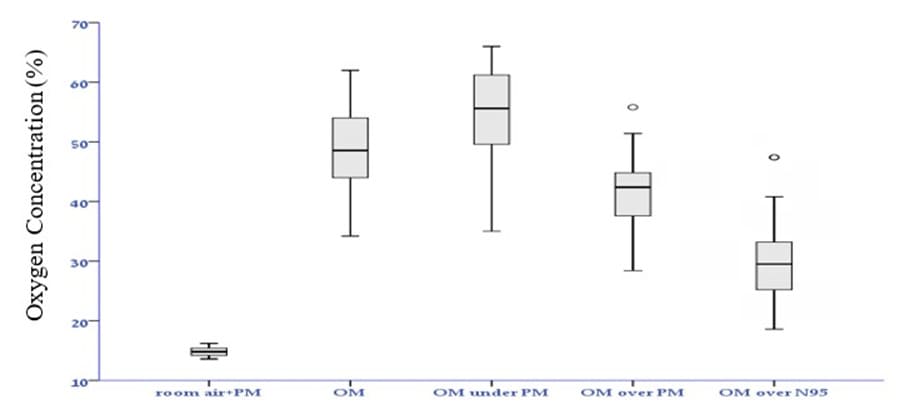

Graph 3: Exhaled oxygen concentration

Concentration of Exhaled Carbon Dioxide

In a one-way analysis of variance test, it was determined that there is no significant difference in the average carbon dioxide concentration across the five conditions (F(4,145)=0.575, p>.05, η²=0.016). Consequently, only 1.6% of the variation in concentration averages can be attributed to the different situations and types of masks. The exhalation value remains nearly constant, with an average value around (M=40.0), and there is no statistical difference observed across all situations and types of masks. See graph 4 (below).

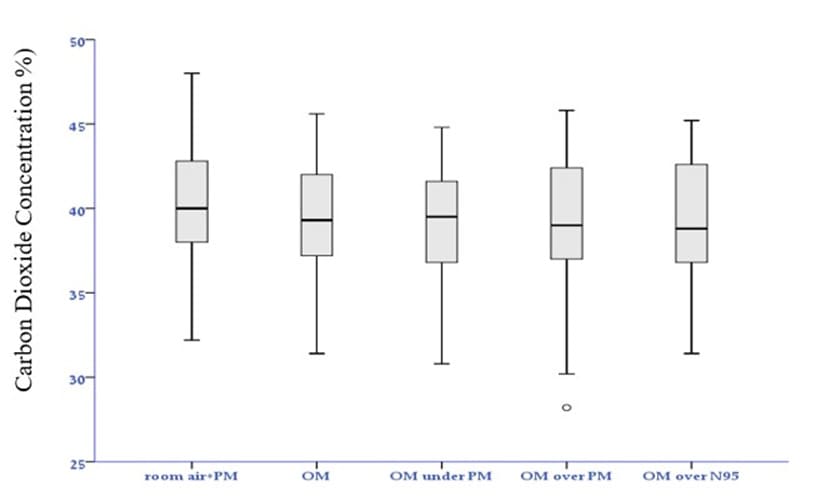

Graph 4: Exhaled Carbon Dioxide Concentration.

Comparing the Data in Relation to the Oxygen Mask Condition Oxygen Mask versus Protective Mask

The comparison between the two conditions was conducted using a t-test for dependent samples. The results of these comparisons are displayed in Table 4 (below).

Table 4: Mean and standard deviation of oxygen and carbon dioxide concentration (in inhalation and exhalation conditions) - comparison of oxygen mask versus protective mask using the t-test for dependent samples.

Based on the findings presented in the table above, it is evident that there is a statistically significant difference in all parameters (both exhalation and inhalation) for both oxygen and carbon dioxide between the conditions of using an oxygen mask and a protective mask.

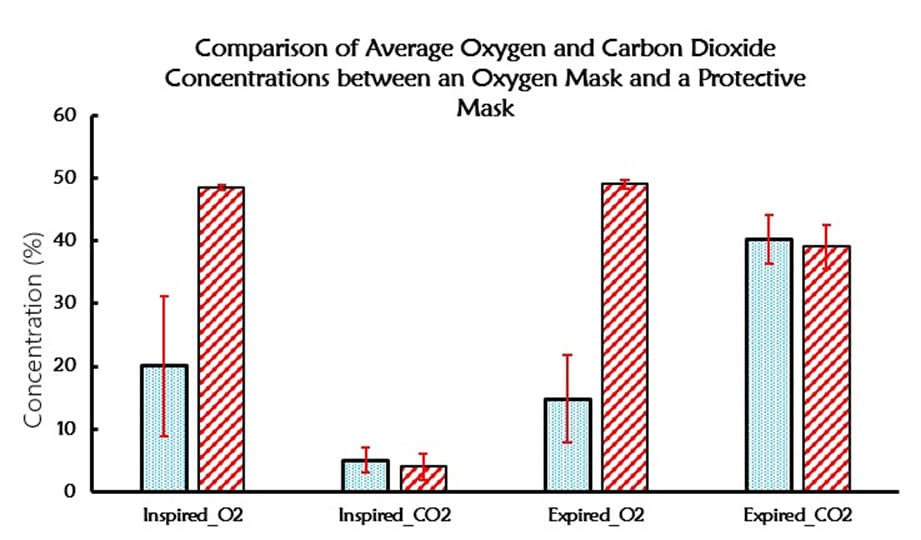

Graph 5: Comparison of Oxygen and Carbon Dioxide Concentration between an Oxygen Mask and a Protective Mask. Blue: protective mask. Red: oxygen mask.

Oxygen Mask Alone vs. Oxygen Mask with a Standard Protective Mask on Top

The comparison between the two conditions was conducted using a t-test for dependent samples. The results of these comparisons are presented in Table 5 (below).

Table 5: Mean and standard deviation of oxygen and carbon dioxide concentration (in inhalation and exhalation conditions) - comparison of an oxygen mask versus an oxygen mask with a standard protective mask on top using a t-test for dependent samples.

According to the findings presented in the table above, a statistically significant difference was observed in the concentration of oxygen during inhalation (t=-2.372, p=0.025). The concentration was higher with an oxygen mask and a standard protective mask (M=52.31, SD=14.72) compared to an oxygen mask alone (M=48.52, SD=11.20). No significant differences were found in the levels of carbon dioxide during both inhalation and exhalation across all parameters. However, a statistically significant difference was identified in the oxygen concentration during exhalation (t=-6.369, p<0.01), with higher oxygen concentration observed when using an oxygen mask with a standard protective mask on top (M=54.77, SD=7.82) compared to an oxygen mask alone (M=49.09, SD= 6.98). The findings are visually represented in the graph below.

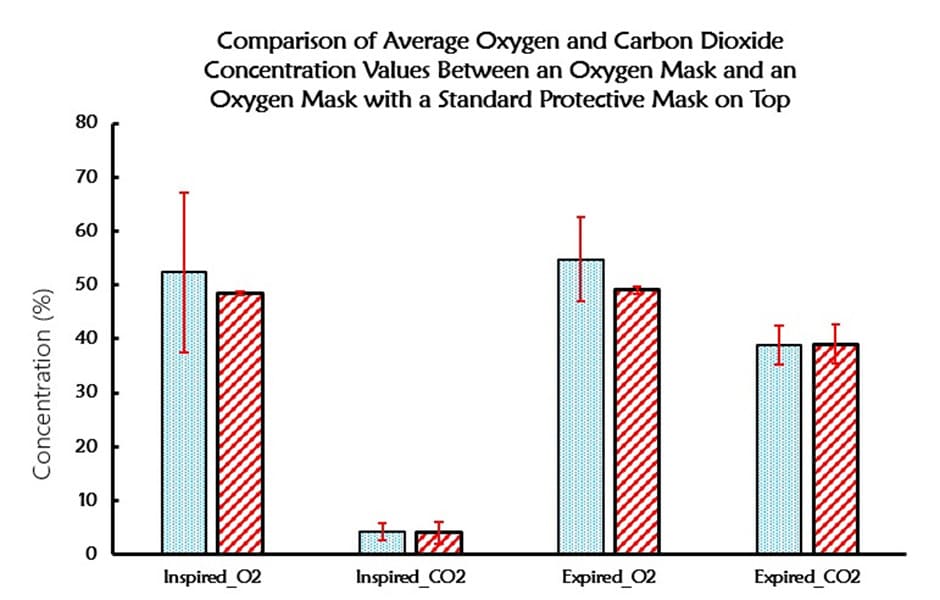

Graph 6: Comparison of oxygen and carbon dioxide concentration between an oxygen mask and an oxygen mask with a standard protective mask on top. Blue: Oxygen Mask with a Standard Protective Mask on Top. Red: oxygen mask.

Comparison: Oxygen Mask Alone vs. Oxygen Mask with a Standard Protective Mask Underneath

The comparison between the two conditions was conducted using a t-test for dependent samples. The results of these comparisons are presented in Table 6 (below).

Table 6: Mean and standard deviation of oxygen and carbon dioxide concentration (in inhalation and exhalation conditions) - comparison of an oxygen mask versus an oxygen mask with a standard protective mask underneath using a t-test for dependent samples.

According to the findings presented in the table above, a statistically significant difference was observed in the concentration of oxygen during inhalation (t=3.637, p=0.001). The concentration was higher with an oxygen mask (M=48.52, SD=11.202) compared to an oxygen mask with a standard protective mask underneath (M=39.78, SD=8.52). No significant differences were found in the levels of carbon dioxide during both inhalation and exhalation across all parameters. However, a statistically significant difference was identified in the oxygen concentration during exhalation (t=6.712, p<0.01), with higher oxygen concentration observed when using an oxygen mask (M=49.09, SD=6.98) compared to an oxygen mask with a standard protective mask underneath (M=41.83, SD=6.13). The findings are visually represented in the graph below.

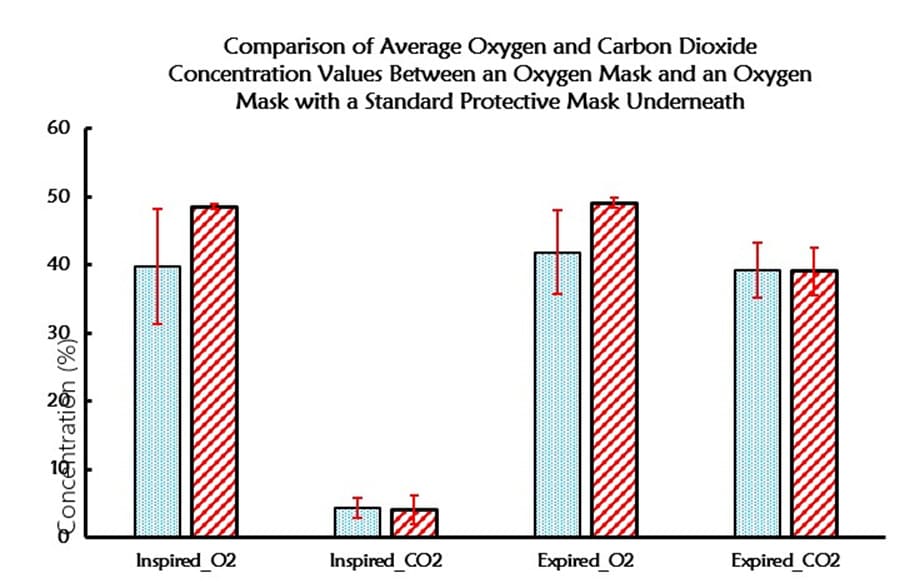

Graph 7: Comparison of oxygen and carbon dioxide concentration between an oxygen mask and an oxygen mask with a standard protective mask underneath. Blue: Oxygen Mask with a Standard Protective Mask Underneath. Red: oxygen mask.

Oxygen Mask Alone vs. Oxygen Mask with an N95 Protective Mask Underneath

The comparison between the two conditions was conducted using a t-test for dependent samples. The results of these comparisons are presented in Table 7 (below).

Table 7: Mean and standard deviation of oxygen and carbon dioxide concentration (in inhalation and exhalation conditions) – comparison of an oxygen mask versus an oxygen mask and an N95 protective mask underneath using a t-test for dependent samples.

According to the findings presented in the table above, a statistically significant difference was observed in the concentration of oxygen during inhalation (t=6.513, p<0.001). The concentration was higher with an oxygen mask (M=48.52, SD=11.202) compared to an oxygen mask with an N95 protective mask underneath (M=32.94, SD=5.78). No significant differences were found in the levels of carbon dioxide during both inhalation and exhalation across all parameters. However, a statistically significant difference was identified in the oxygen concentration during exhalation (t=15.373, p<0.001), with higher oxygen concentration observed when using an oxygen mask (M=49.09, SD=6.98) compared to an oxygen mask with an N95 protective mask underneath (M=30.41, SD=6.74). The findings are visually represented in the graph below.

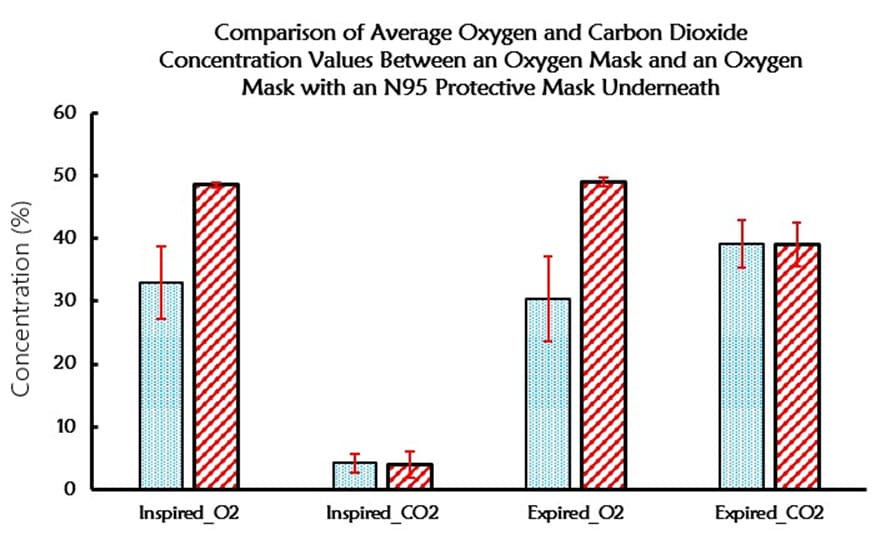

Graph 8: Comparison of oxygen and carbon dioxide concentration between an oxygen mask and an oxygen mask with an N95 protective mask underneath. Blue: Oxygen Mask with an N95 Protective Mask Underneath. Red: oxygen mask.

Oxygen Mask with a Standard Protective Mask Underneath vs. Oxygen Mask with a Standard Protective Mask On Top

The comparison between the two conditions was conducted using a t-test for dependent samples. The results of these comparisons are presented in Table 8 (below).

Table 8: Mean and standard deviation of oxygen and carbon dioxide concentration (in inhalation and exhalation conditions) - comparison of an oxygen mask with a standard protective mask underneath vs. an oxygen mask with a standard protective mask on top using a t-test for dependent samples.

According to the findings presented in the table above, a statistically significant difference was observed in the concentration of oxygen during inhalation (t=4.04, p<0.001). The concentration was higher with an oxygen mask and a normal protective mask on top (M=52.31, SD=14.72) compared to an oxygen mask with a standard protective mask underneath (M=39.78, SD=8.52). No significant differences were found in the levels of carbon dioxide during both inhalation and exhalation across all parameters. However, a statistically significant difference was identified in the oxygen concentration during exhalation (t=7.13, p<0.001), with higher oxygen concentration observed when using an oxygen mask with a standard protective mask on top (M=54.77, SD=7.82) compared to an oxygen mask with a standard protective mask underneath (M=41.83, SD=6.13). The findings are visually represented in the graph below.

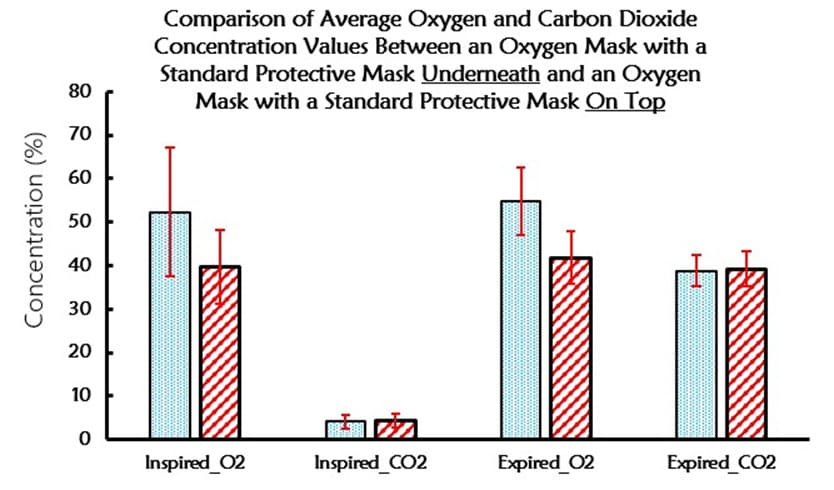

Graph 9: Comparison of oxygen and carbon dioxide concentration between an oxygen mask with a standard protective mask underneath and an oxygen mask with a standard protective mask on top. Blue: Oxygen with a Standard Protective Mask on Top. Red: Oxygen Mask with a Standard Protection Mask Underneath.

Conclusions

The method of wearing protective masks and oxygen masks, as well as the type of protective mask, significantly affects the concentration of inhaled oxygen during oxygen enrichment administration.
